158EIA-HCA158-019
1-5/8" EIA Connector for 1-5/8" Coaxial Cable, Gas stop/ Gas pass,O-Ring Sealing

Radio Frequency Systems line of high-performance HELIFLEX® coaxial cable connectors are characterized by excellent gas tightness and extremely low losses. HELIFLEX® connectors can be installed with basic hand tools. Tab flange of outer connection and use of o-ring sealing simplifies installation of the connector.
RFS connectors are fully tested for mechanical and electrical compliance to specifications.
HELIFLEX® connectors have excellent electrical values and provide outstanding performance for the most demanding applications. The RFS connector design provides maximum sealing integrity and gas tightness.

FEATURES / BENEFITS

  • Easy installation utilizing only basic hand tools.
  • Tab flare of outer contact attachment means quick and simple installation.
  • No need for sealing compound. The connector is ready for pressurization immediately after installed to the cable.
  • Excellent gas tightness. Overpressure for increased voltage handling is maintained throughout the system.
  • Outstanding VSWR performance improves overall system performance.
  • Totally waterproof, assures safe, long term operation in the harshest of environments.
  • RoHS (EU) and CRoHS (China) compliant, can be used on a global basis.


158EIA Connector for HCA158 Cable

Technical features

General Specifications

Transmission Line TypeCoaxial Cable
Cable Size1-5/8
Cable TypeAir Dielectric
Model SeriesHCA158-50 Series
Connector Interface1-5/8" EIA
Connector Type
Gas stop/ Gas pass - See Note 1)
Sealing Method
O-ring seal
GenderFemale - See Note 2)

Electrical Specifications

Insertion loss dB

< 0.05dB

VSWR, Return LossVSWR (dB)0 <f ≤ 860 MHz: 1.02 (40)
860 MHz <f ≤ 2.7 GHz: 1.06 (30.7)

Mechanical Specifications

Plating Outer/InnerTri Plate/Silver
Length mm (in)140 (5.51)
Outer Diameter mm (in)89 (3.5)
Weight kg (lb)1.8 (3.97)
Outer Contact AttachmentTab Flare

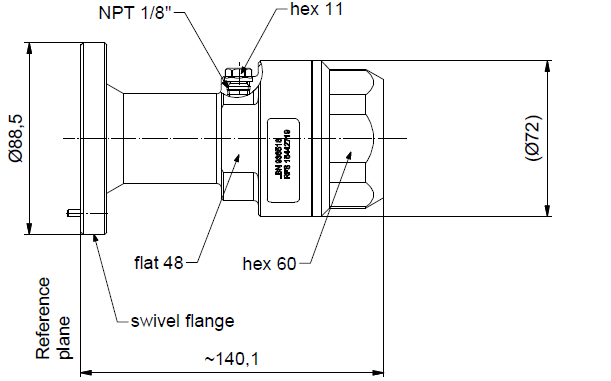

158EIA-HCA158-019 connector, dimensions in mm

External Document Links

Notes

1) The connector is converted to gas pass by drilling through the pilot hole in the insulator.

2) Connector model with -019KT suffix denote connectors that are supplied with an inner connector and flange hardware.

Connector model -019 does not include an inner connector and flange hardware.
